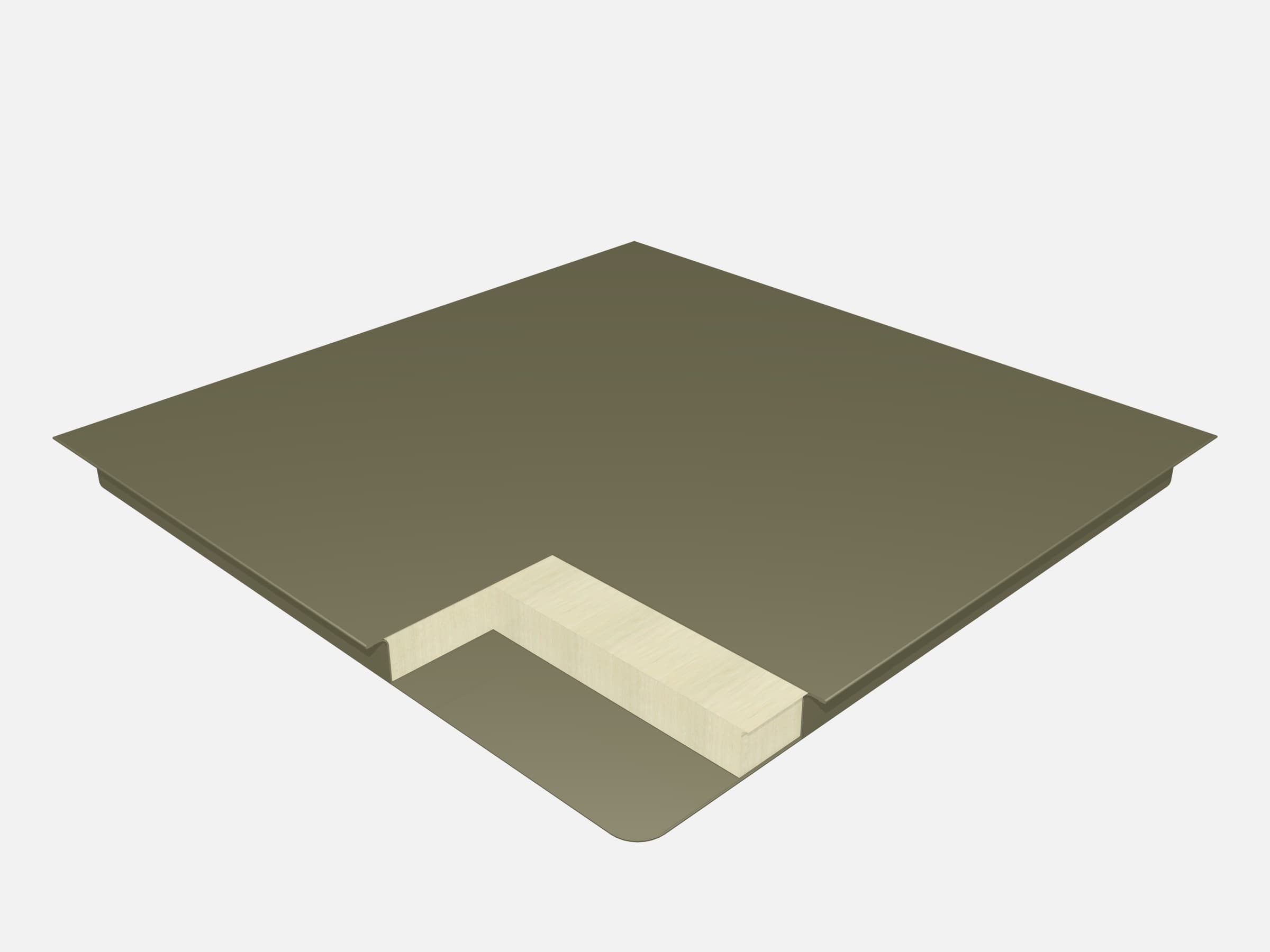

CSF Series

  • Full steel encased Calcium Sulphate panel
  • Panel Size:600mm x 600mm
  • High strength structural Calcium Sulphate
  • Excellent loading performance
  • Corrosion resistant priming coat
  • Galvanized Steel Sheets
  • Panel Engagement with pedestal locating gasket
  • Tolerances
  • Size and squareness ±0.25mm.
  • Flatness ±0.5mm.
  • csg-series-application

    Applications

  • General Office
  • General Commercial
  • Industrial and Heavy-Duty Facilities
  • Equipment, Server, and Telephone Rooms
  • Mission Critical, Control Facilities
  • fire

    Fire Rating

  • Non-combustible
  • 60 Min
  • acoustic

    Acoustic Performance

  • SuperiorNormalized Noise Isolation
  • Vibration reduction gasket
  • sustainability

    Sustainability

  • >50% Recycled Content
  • VOC Tested
  • panel

    PANEL SPECIFICATIONS

    Static Performance (kN)

    Dynamic Performance (kN) - Cycles

    Panel

    Panel (kg)

    System (kg/m2)

    Conce

    ntrated

    Impact

    Ultimate

    Uniform

    10

    Wheel size (mm)

    (75 x 25)

    10,000

    Wheel size (mm)

    (150x 50)

    40,000

    Wheel size (mm)

    (200 x 75)

    CSF 4.5

    17.5

    54

    4.5

    0.68

    8.9

    23.3

    3.6

    2.6

    2.2

    CSF 5.7

    19

    65

    5.7

    0.68

    11.5

    33.1

    4.5

    3.7

    2.25

    Deflection: The access floor panels shall have a deflection during application of the specified concentrated load not exceeding 2.0mm with permanent set deflection not exceeding 0.1mm. The permanent set deflection achieved during application of the specified uniform load shall not exceed 1.0mm.

    panel

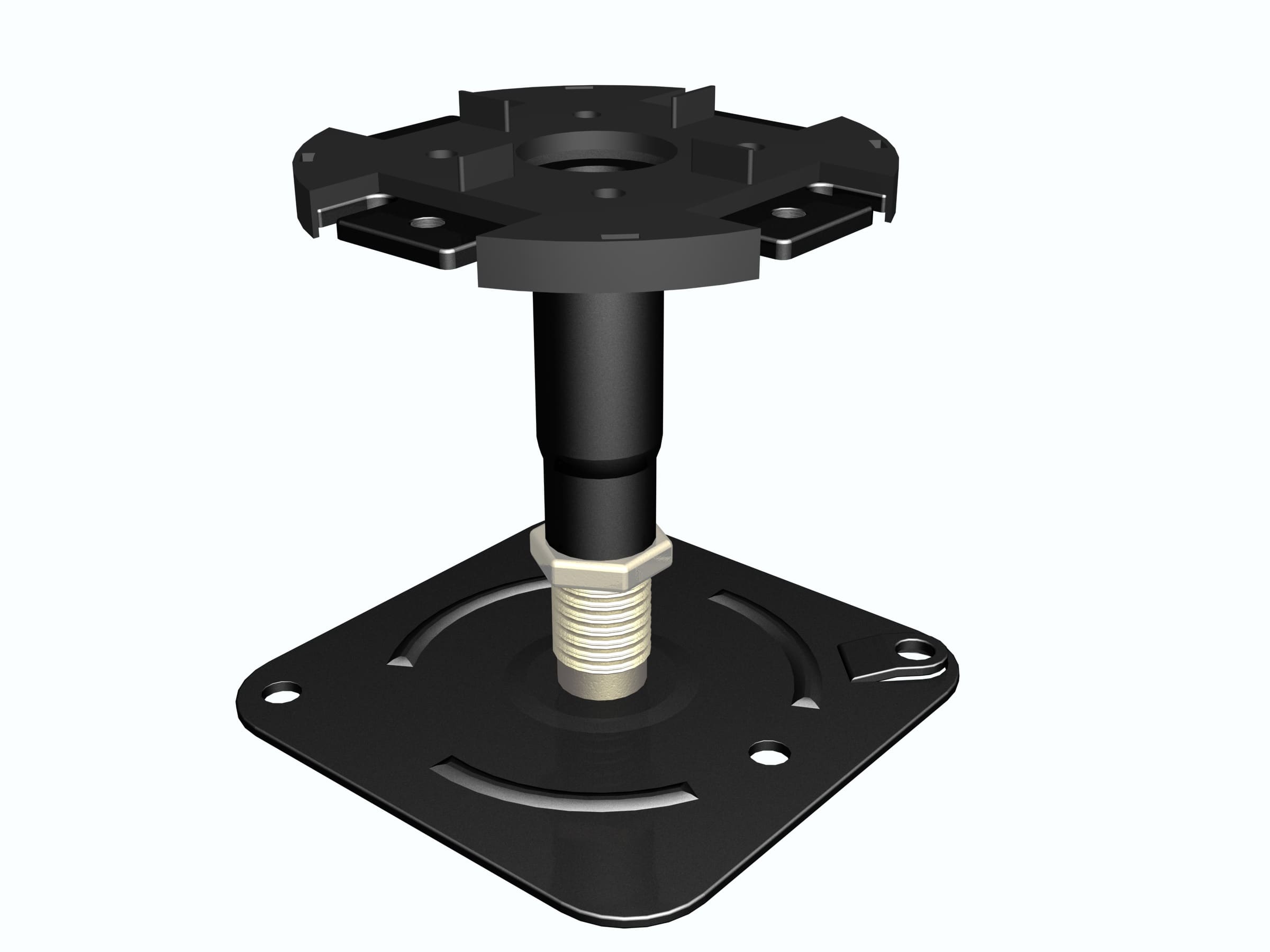

    PEDESTALS

  • Base Size: 100mm x 100mm2

  • Diameter: 25mm3

  • Construction: All steel and aluminum, continuously welded.

  • Coatings: Phosphate corrosion resistant priming coat

  • Epoxy powder coated
  • Chromatized
  • Galvanized
  • PANEL SURFACE FINISHES

  • Bare – Ready to receive any surface finish
  • High Pressure Laminate (HPL)
  • Vinyl
  • Rubber
